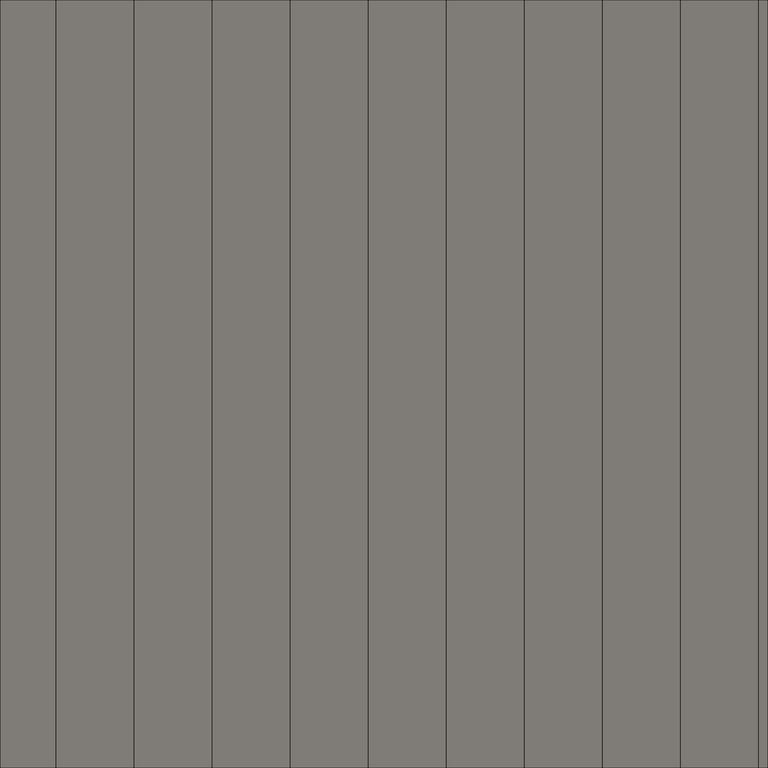

Image of Aluminium SheetCladding Lysaght Permalite VRib Pademelon
 Image of Aluminium SheetCladding Lysaght Permalite VRib Pademelon

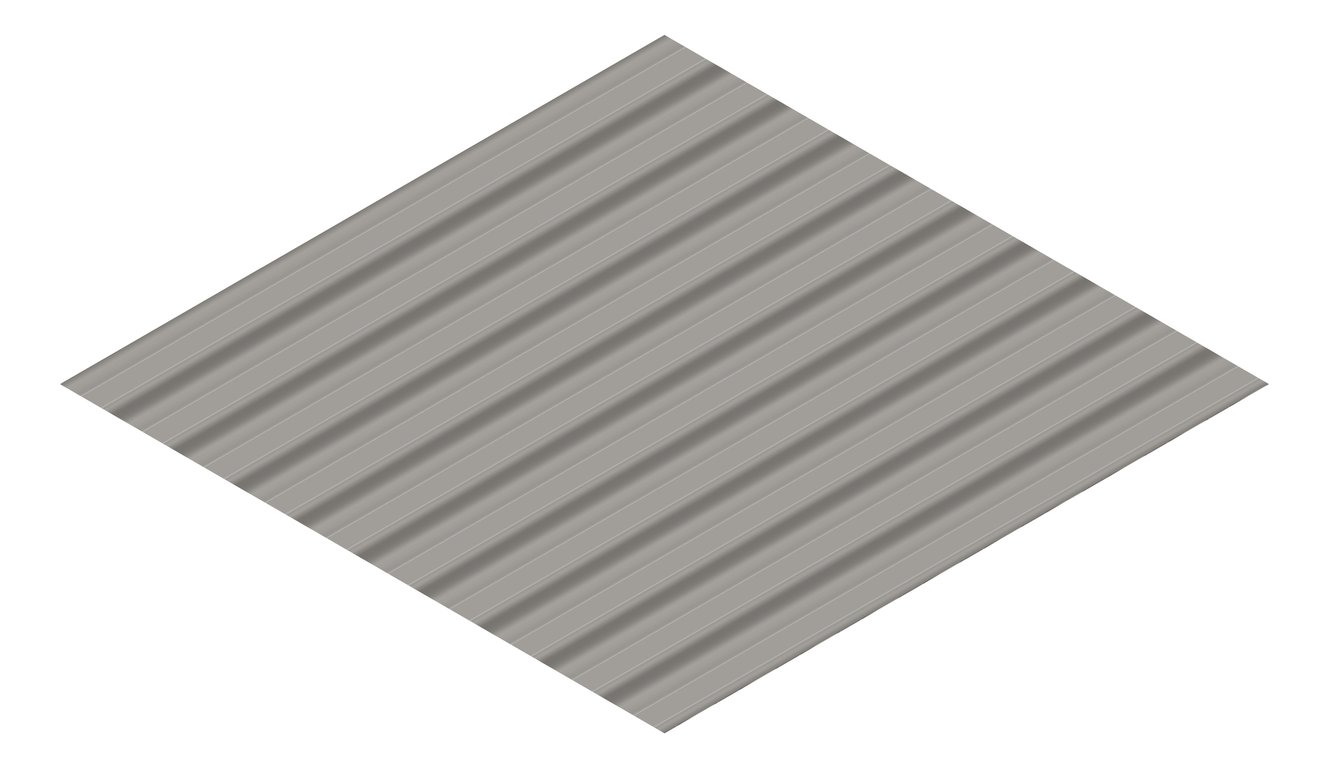

3D Presentation Image of Aluminium SheetCladding Lysaght Permalite VRib Pademelon

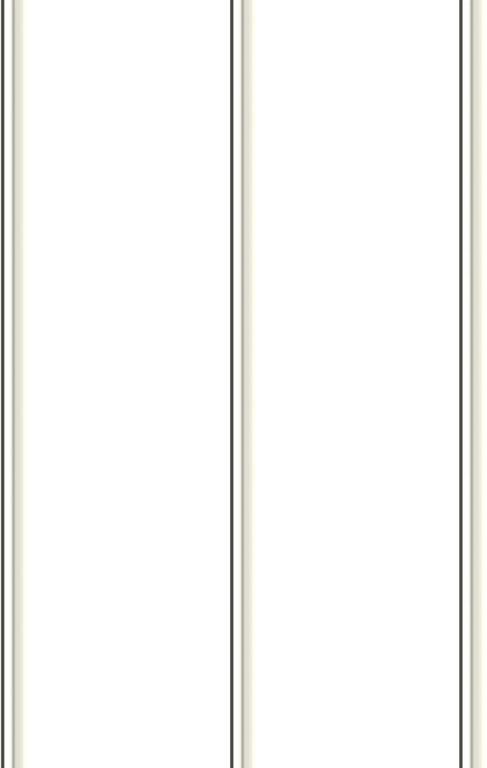

Plan Image of Aluminium SheetCladding Lysaght Permalite VRib Pademelon
LYSAGHT_Permalite_VRib.png Image of Aluminium SheetCladding Lysaght Permalite VRib Pademelon

Aluminium SheetCladding Lysaght Permalite VRib Pademelon

PERMALITE V-Rib® is a roofing and walling profile that has a 915mm cover width and in conjunction with its symmetrical profile, provides a roofing sheet which can also be used effectively on walls. A double capillary drain in the rib overlap ensures almost total weather security. With a neat balanced appearance on buildings, this profile is also effectively used as insulation jacketing in power stations and chemical processing plants.Key Information:Application: Roofing and wallingBase Metal Thickness: 0.70/0.90/1.20mmEffective Cover Width: 915mmRib Height: 31.7mmMinimum Pitch: 3 degrees (1:20)

fast_forward
Advanced Materials
Created By IGS BIM Solutions
remove_red_eye
Virtual Showroom Available
Manufacturer
Model
VRib
Type Comments
Permalite
